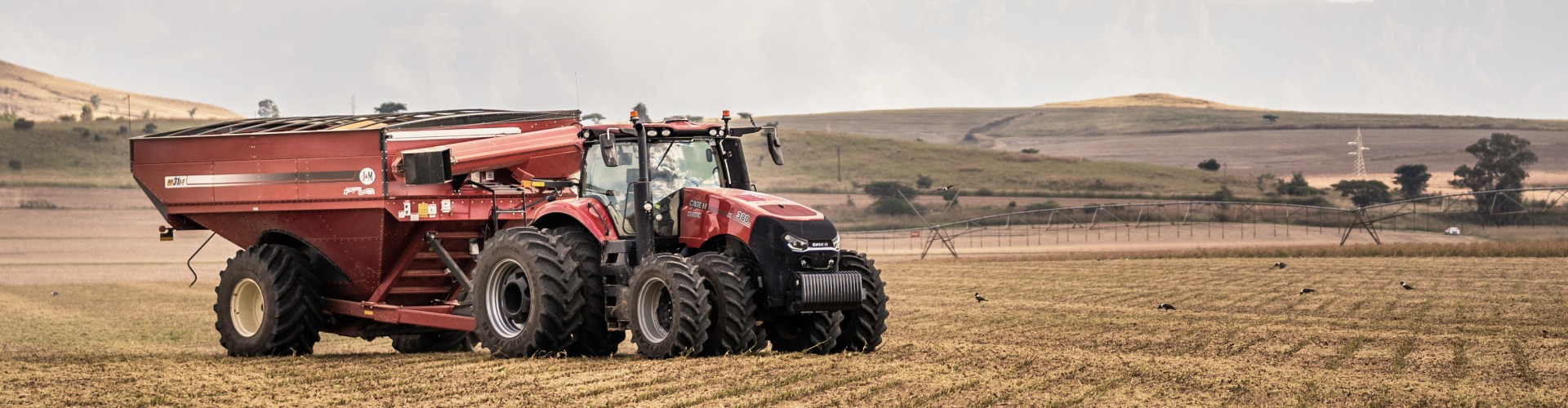

Case IH Magnum Series

Wheeled

In a high-horsepower row crop tractor, you demand efficiency for maximum productivity. With reliable power, advanced hydraulics and an industry-best turning radius, no job is too tough.

ROWTRAC

When traction and agronomic advantages are essential to your operation, the AFS Connect Magnum Rowtrac™ tractors are the right choice. They provide fixed-frame configuration, turn like a traditional tractor and feature the same traction and flotation as all Case IH track systems.

Magnum 265

The Magnum 265 delivers 265 rated hp from a powerful 6-cylinder 8.7L FPT engine, with up to 290 hp peak and 320 hp maximum boosted output. Available with PowerDrive powershift or optional CVXDrive continuously variable transmission, it's built for reliable power, advanced hydraulics, and an industry-best turning radius across any job.

Key Specifications

Engine	6-cylinder FPT diesel • 8.7 L, 24 valves • Rated: 265 hp • Peak: 290 hp • Max boosted: 320 hp • Tier 2 emissions • Turbocharger eVGT • Engine compression brake standard
PTO	218 hp rated PTO • Standard: 1,000 rpm, 1-3/4" dia. • Optional: 3 interchangeable shafts (540 & 1,000 rpm 1-3/8", and 1,000 rpm 1-3/4")
Transmission	PowerDrive 19-speed (standard, 50 kph optional) • CVXDrive continuously variable transmission (optional, 50 kph optional)
Hydraulics	Pressure Flow Compensating (PFC) system • Main pump flow: 225 L/min standard (327 L/min optional) • 5 electrohydraulic remote valves standard (6 optional)
3-Point Hitch	Category III/IIIN standard (Cat IV/III optional) • Rear lift capacity: 7,210 kg standard (7,940 kg optional) • Optional front hitch lift capacity: 4,275 kg • Front hitch PTO: 1,000 rpm CCW rotation
Axle / Drive	Suspended front axle standard • Rear axle diameter: 115 mm • MFD tread adjustability: 1,524-2,235 mm • MFD duals optional
Dimensions	Wheelbase: 3,050 mm (PowerDrive) / 3,100 mm (CVXDrive) • Fuel tank: 678 L (PowerDrive) / 617 L (CVT)
Weight	Average shipping weight: 12,973 kg

Get a Quote View Brochure

Magnum 295

The Magnum 295 delivers 295 rated hp from a powerful 6-cylinder 8.7L FPT engine, with up to 325 hp peak and 351 hp maximum boosted output. Available with PowerDrive powershift or optional CVXDrive continuously variable transmission, it's built for reliable power, advanced hydraulics, and an industry-best turning radius across any job.

Key Specifications

Engine	6-cylinder FPT diesel • 8.7 L, 24 valves • Rated: 295 hp • Peak: 325 hp • Max boosted: 351 hp • Tier 2 emissions • Turbocharger eVGT • Engine compression brake standard
PTO	248 hp rated PTO • Standard: 1,000 rpm, 1-3/4" dia. • Optional: 3 interchangeable shafts (540 & 1,000 rpm 1-3/8", and 1,000 rpm 1-3/4")
Transmission	PowerDrive 19-speed (standard, 50 kph optional) • CVXDrive continuously variable transmission (optional, 50 kph optional)
Hydraulics	Pressure Flow Compensating (PFC) system • Main pump flow: 225 L/min standard (327 L/min optional) • 5 electrohydraulic remote valves standard (6 optional)
3-Point Hitch	Category III/IIIN standard (Cat IV/III optional) • Rear lift capacity: 7,210 kg standard (7,940 kg optional) • Optional front hitch lift capacity: 4,275 kg • Front hitch PTO: 1,000 rpm CCW rotation
Axle / Drive	Suspended front axle standard • Rear axle diameter: 115 mm • MFD tread adjustability: 1,524-2,235 mm • MFD duals optional
Dimensions	Wheelbase: 3,050 mm (PowerDrive) / 3,100 mm (CVXDrive) • Fuel tank: 678 L (PowerDrive) / 617 L (CVT)
Weight	Average shipping weight: 12,973 kg

Get a Quote View Brochure

Magnum 325

The Magnum 325 delivers 325 rated hp from a powerful 6-cylinder 8.7L FPT engine, with up to 356 hp peak and 383 hp maximum boosted output. Available with PowerDrive powershift or optional CVXDrive continuously variable transmission, it's built for reliable power, advanced hydraulics, and an industry-best turning radius across any job.

Key Specifications

Engine	6-cylinder FPT diesel • 8.7 L, 24 valves • Rated: 325 hp • Peak: 356 hp • Max boosted: 383 hp • Tier 2 emissions • Turbocharger eVGT • Engine compression brake standard
PTO	277 hp rated PTO • Standard: 1,000 rpm, 1-3/4" dia. • Optional: 3 interchangeable shafts (540 & 1,000 rpm 1-3/8", and 1,000 rpm 1-3/4")
Transmission	PowerDrive 19-speed (standard, 50 kph optional) • CVXDrive continuously variable transmission (optional, 50 kph optional)
Hydraulics	Pressure Flow Compensating (PFC) system • Main pump flow: 225 L/min standard (327 L/min optional) • 5 electrohydraulic remote valves standard (6 optional)
3-Point Hitch	Category III/IIIN standard (Cat IV/III optional) • Rear lift capacity: 7,210 kg standard (7,940 kg optional) • Optional front hitch lift capacity: 4,275 kg • Front hitch PTO: 1,000 rpm CCW rotation
Axle / Drive	Suspended front axle optional • Rear axle diameter: 115 mm • MFD tread adjustability: 1,524-2,235 mm • MFD duals optional
Dimensions	Wheelbase: 3,050 mm (PowerDrive) / 3,100 mm (CVXDrive)
Weight	13,082 kg

Get a Quote View Brochure

Magnum 355

The Magnum 355 delivers 355 rated hp from a powerful 6-cylinder 8.7L FPT engine, with up to 390 hp peak and 410 hp maximum boosted output. Available with 21-speed PowerDrive powershift or optional CVXDrive continuously variable transmission, it's built for reliable power, advanced hydraulics, and an industry-best turning radius across any job.

Key Specifications

Engine	6-cylinder FPT diesel • 8.7 L, 24 valves • Rated: 355 hp • Peak: 390 hp • Max boosted: 410 hp • Tier 2 emissions • Turbocharger eVGT • Engine compression brake standard
PTO	303 hp rated PTO • Standard: 1,000 rpm, 1-3/4" dia. • Optional: 3 interchangeable shafts (540 & 1,000 rpm 1-3/8", and 1,000 rpm 1-3/4")
Transmission	PowerDrive 21-speed (standard, 40 or 50 kph optional) • CVXDrive continuously variable transmission (optional, 40 or 50 kph optional)
Hydraulics	Pressure Flow Compensating (PFC) system • Main pump flow: 225 L/min standard (327 L/min optional) • 5 electrohydraulic remote valves standard (6 optional)
3-Point Hitch	Category III/IIIN standard (Cat IV/III optional) • Rear lift

Get a Quote View Brochure

Magnum 385

The Magnum 385 delivers 385 rated hp from a powerful 6-cylinder 8.7L FPT engine, with up to 417 hp peak and 435 hp maximum boosted output. Built on CVXDrive continuously variable transmission as standard, it's engineered for reliable power, advanced hydraulics, and an industry-best turning radius across the toughest jobs.

Key Specifications

Engine	6-cylinder FPT diesel • 8.7 L, 24 valves • Rated: 385 hp • Peak: 417 hp • Max boosted: 435 hp • Tier 2 emissions • Turbocharger eVGT • Engine compression brake standard
PTO	320 hp rated PTO • Standard: 1,000 rpm, 1-3/4" dia. • Optional: 3 interchangeable shafts (540 & 1,000 rpm 1-3/8", and 1,000 rpm 1-3/4")
Transmission	CVXDrive continuously variable transmission (standard) • 21-speed PowerDrive available as an alternative configuration
Hydraulics	Pressure Flow Compensating (PFC) system • Main pump flow: 225 L/min standard (327 L/min optional) • 5 electrohydraulic remote valves standard (6 optional)
3-Point Hitch	Category IV/III standard • Rear lift capacity: 9,026 kg • Optional front hitch lift capacity: 4,275 kg • Front hitch PTO: 1,000 rpm CCW rotation
Axle / Drive	Suspended front axle optional • Rear axle diameter: 127 mm • MFD tread adjustability: 1,524-2,235 mm • MFD duals optional
Dimensions	Wheelbase: 3,150 mm
Weight	Not confirmed in source brochure — contact your dealer for exact shipping weight

Get a Quote View Brochure

Magnum 405

Topping the Magnum range, the 405 delivers 405 rated hp from a powerful 6-cylinder 8.7L FPT engine, with up to 435 hp peak and maximum boosted output. Built on the proven 21-speed PowerDrive powershift transmission, it's engineered for reliable power, advanced hydraulics, and an industry-best turning radius across the most demanding jobs.

Key Specifications

Engine	6-cylinder FPT diesel • 8.7 L, 24 valves • Rated: 405 hp • Peak / Max boosted: 435 hp • Tier 2 emissions • Turbocharger eVGT • Engine compression brake standard
PTO	352 hp rated PTO • Standard: 1,000 rpm, 1-3/4" dia. • Optional: 3 interchangeable shafts (540 & 1,000 rpm 1-3/8", and 1,000 rpm 1-3/4")
Transmission	PowerDrive 21-speed (standard, 40 or 50 kph optional) • CVXDrive not available on this model
Hydraulics	Pressure Flow Compensating (PFC) system • Main pump flow: 225 L/min standard (327 L/min optional) • 5 electrohydraulic remote valves standard (6 optional)
3-Point Hitch	Category IV/III standard • Rear lift capacity: 9,026 kg • Optional front hitch lift capacity: 4,275 kg • Front hitch PTO: 1,000 rpm CCW rotation
Axle / Drive	Suspended front axle optional • Rear axle diameter: 127 mm • MFD tread adjustability: 1,524-2,235 mm • MFD duals optional

Get a Quote View Brochure

⬅ Swipe sideways to compare models ➡

Model	Magnum 265	Magnum 295	Magnum 325	Magnum 355	Magnum 385	Magnum 405
Engine
Rated HP	265 hp	295 hp	325 hp	355 hp	385 hp	405 hp
Max Power w/ Boost	320 hp	351 hp	383 hp	410 hp	435 hp	435 hp
Cylinders	6-cyl, 8.7L FPT	6-cyl, 8.7L FPT	6-cyl, 8.7L FPT	6-cyl, 8.7L FPT	6-cyl, 8.7L FPT	6-cyl, 8.7L FPT
Emissions	Tier 2	Tier 2	Tier 2	Tier 2	Tier 2	Tier 2
Fuel Tank / AdBlue	PowerDrive: 678 L / CVT: 617 L	PowerDrive: 678 L / CVT: 617 L	PowerDrive: 678 L / 99 L CVT: 617 L / 99 L	PowerDrive: 678 L / 99 L CVT: 617 L / 99 L	PowerDrive: 678 L / 99 L CVT: 617 L / 99 L	PowerDrive: 678 L / 99 L CVT: 617 L / 99 L
Power Take Off
Rear PTO (Standard)	1,000 rpm, 1-3/4" dia.
Rear PTO (Optional)	3 interchangeable shafts: 540 & 1,000 rpm (1-3/8") and 1,000 rpm (1-3/4")
Front Hitch PTO	1,000 rpm, CCW rotation, 35mm (1-3/8") 21-spline shaft (optional)
Transmission
PowerDrive	19-speed	19-speed	19-speed	21-speed	Not standard	21-speed
CVXDrive (CVT)	Optional	Optional	Optional	Optional	Optional	Not available
Max Road Speed	Max 50 kph (model/transmission/spec dependent)
Hydraulics
Main Pump Flow	225 L/min standard (327 L/min optional twin flow)
Remote Valves	5 electrohydraulic standard (6 optional)
3-Point Hitch
Category	Cat III/IIIN / Cat IV/III Option	Cat III/IIIN / Cat IV/III Option	Cat III/IIIN / Cat IV/III Option	Cat IV/III	Cat IV/III	Cat IV/III
Rear Lift Capacity	7,210 kg (7,940 kg opt)	7,210 kg (7,940 kg opt)	7,210 kg (7,940 kg opt)	9,026 kg	9,026 kg	9,026 kg
Front Hitch Lift (Optional)	4,275 kg
Dimensions & Weight
Wheelbase (PowerDrive / CVXDrive)	3,050 mm / 3,100 mm	3,050 mm / 3,100 mm	3,050 mm / 3,100 mm	3150 mm	3150 mm	3150 mm
Average Shipping Weight Wheeled / Rowtrac	12,973 kg	12,973 kg	13,082 kg	14,148 kg / 16,329 kg	14,148 kg / 16,329 kg	14,148 kg / 16,329 kg
