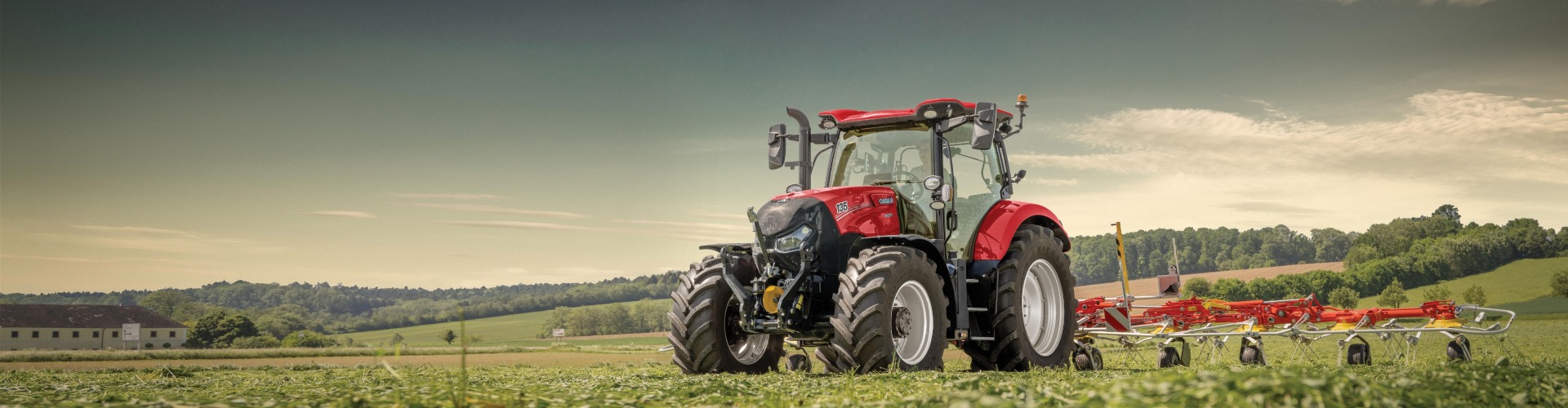

Case IH Maxxum Series
Maxxum 110 Tier 3
A hard-working, versatile workhorse for the midsize farm, the Maxxum 110 is ideal for loader applications, haymaking, mowing and mixed farming operations with crops and livestock. Powered by a proven 4-cylinder 4.5 L FPT turbo intercooled Tier 3 engine producing 112 hp, this mechanical, no-nonsense powerplant delivers reliable performance with minimal electronics and easy servicing. Backed by a 113 L/min hydraulic system and a class-leading 7,864 kg lift capacity, the Maxxum 110 is built to handle everything from row-crop work to roadside mowing.
Maxxum 115 Stage V
The Maxxum 115 sits at the entry point of the Case IH Maxxum range, delivering agile, frugal and dependable performance for mid-range operations. Powered by a 4-cylinder 4.5 L FPT engine producing 116 hp (145 hp with Power Management), it's fully Stage V compliant via HI-eSCR exhaust after-treatment with no particle filter to service. Available as Maxxum 115 Multicontroller with the 24 x 24 ActiveDrive 8 powershift transmission, or as Maxxum 115 CVT with stepless continuously variable drive, it's backed by a powerful 150 L/min hydraulic pump and a class-leading 7,864 kg lift capacity.
Maxxum 125 Tier 3
A hard-working, versatile workhorse for the midsize farm, the Maxxum 125 is ideal for loader applications, haymaking, mowing and mixed farming operations with crops and livestock. Powered by a proven 6-cylinder 6.7 L FPT turbo intercooled Tier 3 engine producing 126 hp, this mechanical, no-nonsense powerplant delivers reliable performance with minimal electronics and easy servicing. Backed by a 113 L/min hydraulic system and a class-leading 7,864 kg lift capacity, the Maxxum 125 is built to handle everything from row-crop work to roadside mowing.
Maxxum 135 Stage V
The Maxxum 135 sits in the mid-tier of the Case IH Maxxum range, delivering agile, frugal and dependable performance for demanding field and loader work. Powered by a 4-cylinder 4.5 L FPT engine producing 135 hp (169 hp with Power Management), it's fully Stage V compliant via HI-eSCR exhaust after-treatment with no particle filter to service. Available as Maxxum 135 Multicontroller with the 24 x 24 ActiveDrive 8 powershift transmission, or as Maxxum 135 CVT with stepless continuously variable drive, it's backed by a powerful 150 L/min hydraulic pump and a class-leading 7,864 kg lift capacity.
Maxxum 140 - Tier 3
Maxxum 140 Tier 3
Topping this Maxxum range, the Maxxum 140 is a hard-working, versatile workhorse for the midsize farm, ideal for loader applications, haymaking, mowing and mixed farming operations with crops and livestock. Powered by a proven 6-cylinder 6.7 L FPT turbo intercooled Tier 3 engine producing 141 hp, this mechanical, no-nonsense powerplant delivers reliable performance with minimal electronics and easy servicing. Backed by a 113 L/min hydraulic system and a class-leading 7,864 kg lift capacity, the Maxxum 140 is built to handle everything from row-crop work to roadside mowing.
Maxxum 150 Stage V
Topping the Case IH Maxxum range, the Maxxum 150 is the lightest, smallest tractor in the industry to feature a six-cylinder engine of this power output. Powered by a 6-cylinder 6.7 L FPT engine producing 145 hp (up to 175 hp with Power Management for PTO and road haulage applications), it's fully Stage V compliant via HI-eSCR exhaust after-treatment with no particle filter to service. Available as Maxxum 150 Multicontroller with the 24 x 24 ActiveDrive 8 powershift transmission, or as Maxxum 150 CVT with stepless continuously variable drive, it's backed by a powerful 150 L/min hydraulic pump and a class-leading 7,864 kg lift capacity.
| Model | Maxxum 110 (Tier 3) | Maxxum 125 (Tier 3) | Maxxum 140 (Tier 3) | Maxxum 115 (Stage V) | Maxxum 135 (Stage V) | Maxxum 150 (Stage V) |
|---|---|---|---|---|---|---|
| Engine | ||||||
| Rated Power | 82 kW (112 hp) | 93 kW (126 hp) | 104 kW (141 hp) | 85 kW (116 hp) | 99 kW (135 hp) | 107 kW (145 hp) |
| Max Power w/ Power Mgmt | – | – | – | 107 kW (145 hp) | 124 kW (169 hp) | Up to 175 hp |
| Cylinders / Capacity | 4-cyl / 4,485 cm³ | 6-cyl / 6,728 cm³ | 6-cyl / 6,728 cm³ | 4-cyl / 4,485 cm³ | 4-cyl / 4,485 cm³ | 6-cyl / 6,728 cm³ |
| Emissions | Stage 3A | Stage 3A | Stage 3A | Stage V | Stage V | Stage V |
| Max Torque | 510 Nm @ 1,400 rpm | 555 Nm @ 1,250 rpm | 625 Nm @ 1,250 rpm | – | – | – |
| Torque Rise | 43% | 38% | 39% | – | – | – |
| Fuel Tank | 176 L | 250 L | 250 L | 198 L (222 L opt) | 198 L (222 L opt) | 198 L (222 L opt) |
| Service Interval | 600 hrs | 600 hrs | 600 hrs | 750 hrs | 750 hrs | 750 hrs |
| Power Take Off | ||||||
| PTO Speeds | 540/540E/1000 | 540/540E/1000 | 540/540E/1000 | 540/540E/1000 or 540E/1000/1000E | 540/540E/1000 or 540E/1000/1000E | 540/540E/1000 or 540E/1000/1000E |
| Front PTO | 1,000 rpm, optional | 1,000 rpm, optional | 1,000 rpm, optional | 1,000 rpm, optional | 1,000 rpm, optional | 1,000 rpm, optional |
| Transmission | ||||||
| Standard | 16x16 Semi-Powershift w/ Autoshift | 16x16 Semi-Powershift w/ Autoshift | 16x16 Semi-Powershift w/ Autoshift | ActiveDrive 8, 24x24 (Multicontroller) or CVT (0-50kph) | ActiveDrive 8, 24x24 (Multicontroller) or CVT (0-50kph) | ActiveDrive 8, 24x24 (Multicontroller) or CVT (0-50kph) |
| Optional | 24x24 Synchro Hi/Lo, 32x32 creeper, 50/40kph ECO | 24x24 Synchro Hi/Lo, 32x32 creeper, 50/40kph ECO | 24x24 Synchro Hi/Lo, 32x32 creeper, 50/40kph ECO | 50kph optional | 50kph optional | 50kph optional |
| Axle / Drive | ||||||
| 4WD / Steering | Electro-hydraulic, Auto 4WD/Diff Lock, 55° | Electro-hydraulic, Auto 4WD/Diff Lock, 55° | Electro-hydraulic, Auto 4WD/Diff Lock, 55° | Class 3 std (Class 4 opt), Adaptive Steering Control | Class 3 std (Class 4 opt), Adaptive Steering Control | Class 3 std (Class 4 opt), Adaptive Steering Control |
| Hydraulics | ||||||
| Max Pump Flow | 113 L/min | 113 L/min | 113 L/min | 150 L/min | 150 L/min | 150 L/min |
| Remote Valves | Up to 4 rear, 1 power beyond, 2 mid-mount | Up to 4 rear, 1 power beyond, 2 mid-mount | Up to 4 rear, 1 power beyond, 2 mid-mount | Up to 4 mechanical rear | Up to 4 mechanical rear | Up to 4 mechanical rear |
| 3-Point Hitch | ||||||
| Max Lift (Ball Ends) | 7,864 kg | 7,864 kg | 7,864 kg | 7,864 kg | 7,864 kg | 7,864 kg |
| Front Hitch | 3,700 kg, Cat II (opt) | 3,700 kg, Cat II (opt) | 3,700 kg, Cat II (opt) | Optional | Optional | Optional |
| Dimensions & Weight | ||||||
| Wheelbase | 2,412 mm | 2,652 mm | 2,652 mm | – | – | – |
| Overall Length | 4,292 mm | 4,532 mm | 4,532 mm | – | – | – |
| Standard Tyres (F/R) | 13.6R24 / 16.9R34 | 14.9R24 / 16.9R38 | 14.9R24 / 16.9R38 |
