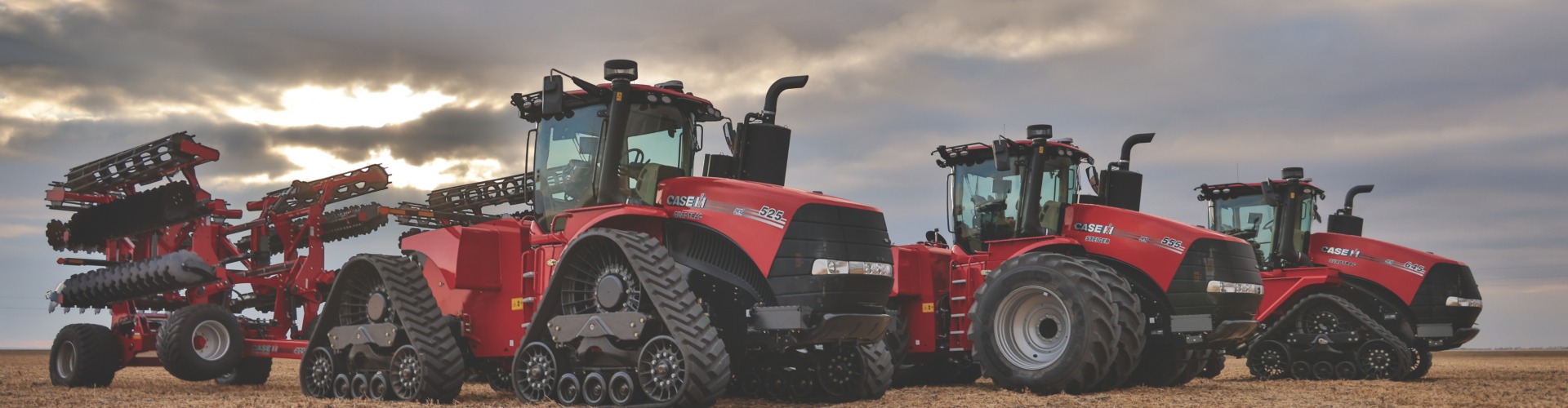

Case IH Steiger Series
STEIGER SERIES
Steiger 425
The Steiger 425 delivers extreme high-horsepower performance and uncompromising durability for the largest and most demanding broadacre and heavy cultivation operations. Built on the proven Steiger platform and available in both Wheeled and Rowtrac configurations, it combines massive pulling power, heavy-duty hydraulics and versatile chassis options to handle deep tillage, ultra-wide seeding equipment and sustained high-load work with confidence.
Steiger 475
The Steiger 475 delivers next-level high-horsepower performance for the most demanding large-scale broadacre operations. Available in Wheeled, Rowtrac and Quadtrac configurations, it combines immense engine power, heavy-duty hydraulics and a choice of chassis options to maintain productivity, traction and stability in the toughest conditions.
Steiger 525
The all-new Steiger 525 has been designed to pull high speed planters, complete emergence field work and more. Available in Wheeled, Rowtrac and Quadtrac configurations, it combines immense engine power, heavy-duty hydraulics and a choice of chassis options to maintain productivity, traction and stability in the toughest conditions.
Steiger 555
Meet tough field conditions head on with the Steiger 555, delivering high-horsepower performance backed by a two-stage turbocharged engine for superior response under load. Available in Wheeled and Quadtrac configurations, it combines heavy-duty hydraulics and advanced data management capabilities to maintain productivity and stability in the toughest conditions.
Steiger 595
The Steiger 595 delivers serious high-horsepower performance backed by a two-stage turbocharged engine for superior response under load. Available in Wheeled and Quadtrac configurations, it combines heavy-duty hydraulics and advanced data management capabilities to maintain productivity and stability in the toughest conditions.
Steiger 645
The Steiger 645 delivers exceptional high-horsepower performance backed by a two-stage turbocharged engine for superior response under the heaviest loads. Available in Wheeled and Quadtrac configurations, it combines heavy-duty hydraulics and advanced data management capabilities to maintain productivity and stability across the toughest broadacre operations.
Steiger 715
The Steiger 715 Quadtrac delivers exceptional high-horsepower performance backed by a larger 16L two-stage turbocharged engine for maximum response under the heaviest loads. Available exclusively in Quadtrac configuration, it combines heavy-duty hydraulics, industry-exclusive four-track technology and advanced data management capabilities to maintain productivity and stability across the largest broadacre operations.
Steiger 785
Topping the entire Steiger range, the 785 Quadtrac delivers Case IH's most powerful tractor yet, backed by a 16L two-stage turbocharged engine for maximum response under the heaviest loads. Available exclusively in Quadtrac configuration, it combines heavy-duty hydraulics, industry-exclusive four-track technology and advanced data management capabilities to maintain productivity and stability across the largest and most demanding broadacre operations.
Wheeled Machines
| Model | 425 | 475 | 525 | 555 | 595 | 645 |
|---|---|---|---|---|---|---|
| Engine | ||||||
| Engine HP | 425 hp | 475 hp | 525 hp | 555 hp | 595 hp | 645 hp |
| Max Engine HP | 467 hp | 522 hp | 578 hp | 614 hp | 656 hp | 699 hp |
| PTO HP | 409 hp | 462 hp | 516 hp | 537 hp | 537 hp | 537 hp |
| Turbocharger | SST electronic variable | SST electronic variable | SST electronic variable | TST two-stage | TST two-stage | TST two-stage |
| Cylinders / Displacement | 6-cyl / 24 valves / 13 L | |||||
| Emissions | Tier 2 | |||||
| Transmission / PTO | ||||||
| Standard | PowerDrive 16F/2R full powershift, 16 Hi (40 kph) | |||||
| CVT Option | Available | Available | Available | Available | Not available | Not available |
| PTO Speed | 1,000 rpm | |||||
| Axles | ||||||
| Axle Diameter | 127 mm bar, 4 gear planetary | 127 mm bar, 4 gear planetary | 127 mm bar, 4 gear planetary | 127 mm bar | 140 mm bar, 3 gear compound planetary | 140 mm bar, 3 gear compound planetary |
| Axle Width | 3,048 mm | |||||
| Wheelbase | 3,759 mm | 3,759 mm | 3,759 mm | 3,912 mm | 3,912 mm | 3,912 mm |
| Hydraulics / Hitch | ||||||
| Rear Remotes | 6 standard, up to 8 optional | |||||
| Hydraulic Pump | 216 L/min standard, 428 L/min total with TwinFlow | |||||
| 3-Point Hitch Category | Cat 4N | Cat 4N | Cat 4N | Cat 4N* | Cat 4N* | Cat 4N* |
| Hitch Lift Capacity | 9,935 kg | 9,935 kg | 9,935 kg | 10,309 kg | 10,309 kg | 10,309 kg |
| Drawbar (Std / Opt 1 / Opt 2) | Cat 4: 2,722 kg / Cat 4: 4,990 kg / Cat 5: 6,804 kg | |||||
| Capacities & Weight | ||||||
| Fuel Tank | 1,170 L | 1,170 L | 1,170 L | 1,722 L | 1,722 L | 1,722 L |
| Base Weight | 18,507 kg | 18,507 kg | 18,507 kg | 21,012 kg | – | 22,828 kg |
| Max Weight (GVW) | 25,401 kg | 25,401 kg | 25,401 kg | 27,215 kg | – | 30,390 kg |
Rowtrac Machines
| Model | 425 | 475 | 525 |
|---|---|---|---|
| Engine | |||
| Engine HP | 425 hp | 475 hp | 525 hp |
| Max Engine HP | 467 hp | 522 hp | 578 hp |
| PTO HP | 409 hp | 462 hp | 516 hp |
| Turbocharger | SST electronic variable | ||
| Cylinders / Displacement | 6-cyl / 24 valves / 13 L | ||
| Emissions | Tier 2 | ||
| Transmission / PTO | |||
| Standard | PowerDrive 16F/2R full powershift, 16 Hi (40 kph) | ||
| CVT Option | Available (40 kph) | ||
| PTO Speed | 1,000 rpm | ||
| Axles & Tracks | |||
| Axle Type | Flanged | ||
| Track/Axle Width Options | 2,032 mm / 2,235 mm / 3,048 mm | ||
| Wheelbase | 4,064 mm | ||
| Hydraulics / Hitch | |||
| Rear Remotes | 6 standard, up to 8 optional | ||
| Hydraulic Pump | 216 L/min standard, 428 L/min total with TwinFlow | ||
| 3-Point Hitch Category | Cat 4N | ||
| Hitch Lift Capacity | 9,935 kg | ||
| Drawbar (Std / Opt 1 / Opt 2) | Cat 4: 2,722 kg / Cat 4: 4,990 kg / Cat 5: 6,804 kg | ||
| Capacities & Weight | |||
| Fuel Tank | 1,287 L | ||
| Base Weight | 23,678 kg | ||
| Max Gross Weight | 29,484 kg |
Quadtrac Machines
| Model | 475 | 525 | 555 | 595 | 645 | 715 | 785 |
|---|---|---|---|---|---|---|---|
| Engine | |||||||
| Engine HP | 475 hp | 525 hp | 555 hp | 595 hp | 645 hp | 715 hp | 785 hp |
| Max Engine HP (Peak) | 522 hp | 578 hp | 614 hp | 656 hp | 699 hp | 778 hp | 853 hp |
| PTO HP | 462 hp | 516 hp | 537 hp | 537 hp | 537 hp | 537 hp | – |
| Turbocharger | SST electronic variable | SST electronic variable | TST two-stage | TST two-stage | TST two-stage | TST two-stage | TST two-stage |
| Cylinders / Displacement | 6-cyl / 13 L | 6-cyl / 13 L | 6-cyl / 13 L | 6-cyl / 13 L | 6-cyl / 13 L | 6-cyl / 13 L | 6-cyl / 16 L |
| Emissions | Tier 2 | ||||||
| Transmission / PTO | |||||||
| Standard Transmission | PowerDrive 16F/2R full powershift, 16 Hi (40 kph or 42.6 kph w/ HDS) | PowerDrive 16F/2R, 16 Hi (42.6 kph only) | |||||
| CVT Option | Available | Available | Available | Not available | Not available | Not available | Not available |
| PTO Speed | 1,000 rpm | ||||||
| Axles & Tracks | |||||||
| Axle Type | Flanged | ||||||
| Axle / Track Width | 2,235 mm | ||||||
| Wheelbase | 3,912 mm | ||||||
| Heavy-Duty Suspension (HDS) | Optional on all Quadtrac models (475–785) | ||||||
| Hydraulics / Hitch | |||||||
| Rear Remotes | 6 standard, up to 8 optional | ||||||
| Hydraulic Pump | 216 L/min standard, 428 L/min total with TwinFlow | 216 L/min standard (CVT N/A) | |||||
| 3-Point Hitch Category | Cat 4N* | ||||||
| Hitch Lift Capacity | 10,092 kg | 10,092 kg | 10,092 kg | ||||
| Drawbar |
