Case IH Farmlift Telehandler

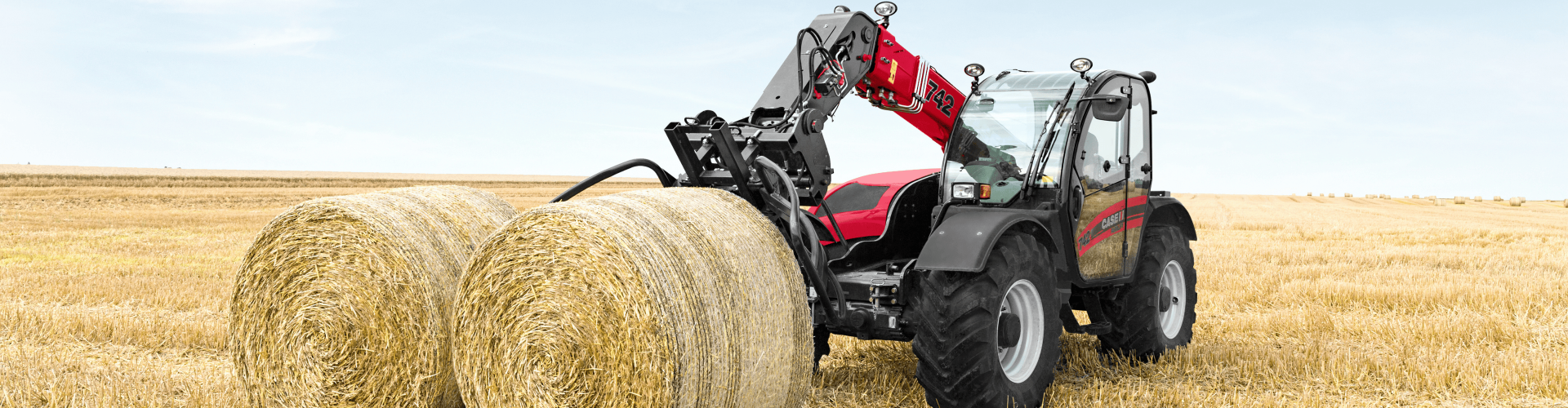

Case IH Farmlift 742 Telehandler
7m lift height | 4.2 tonne lift capacity | 146 hp
Need a telehandler that can keep up with the demands of Queensland farming? The Case IH Farmlift 742 combines a powerful 4,200kg maximum lift capacity with a 7m lift height, giving you the reach and muscle to handle grain, hay, bulk bags and everyday yard work with ease. A redesigned cab, 7-inch display and 140 L/min CCLS hydraulics deliver faster cycle times and a more comfortable day in the seat, while a 600-hour service interval keeps downtime to a minimum during your busiest periods.
Why Farmers Choose the Farmlift 742
| High Capacity Boom
7m lift height with a 4.2 tonne lift capacity, built to move real loads around the farm and yard. | Smart Hydraulics
140 L/min CCLS load-sensing pump with bucket shake and electro-hydraulic self-levelling for faster, easier loading. | All-Round Visibility
New bonnet design gives 9% better right-hand visibility, plus a high-visibility roof for working at height. |
| Comfort Cab
7-inch display with reverse camera, air-suspended seat and an armrest-mounted joystick for all-day comfort. | Built to Last
4.5L FPT Tier III engine delivering 146hp, with an H-shaped ladder chassis for stability under heavy payloads. | Easy Maintenance
Extended 600-hour service intervals and a one-piece bonnet for quick, easy access to the engine bay. |
Farmlift 742 Specifications
| MODEL | |
| Max. lift capacity | 4,200 kg |
| Max. lift height | 7 m |
| HYDRAULICS | |
| Piston pump | 140 L/min |
| Hydraulic oil tank capacity | 105 L |
| BUCKET ANGLE | |
| Dump angle | 118° |
| Total rotation angle | 142° |
| ENGINE | |
| Type | 4 cylinder, Euro Tier III, common rail diesel, turbo intercooler |
| Displacement | 4,485 cm³ |
| Rated engine power (ISO TR14396 - ECE R120) | 96 kW / 129 hp @ 2,200 rpm |
| Max. engine power | 107 kW / 146 hp @ 1,800 rpm |
| Max. torque | 591 Nm @ 1,500 rpm |
| Fuel tank / AdBlue capacity | 140 L / 27 L |
| TRANSMISSION | |
| Type | 6 x 3 Powershift (manual and auto shifting) |
| Max. travel speed | 40 km/h |
| AXLES & STEERING | |
| Limited slip differential | Front and rear, 4WD |
| Steering modes | 2WS / 4WS / Crab |
| WEIGHTS & DIMENSIONS | |
| Length, fork heel to counterweight | 5,239 mm |
| Wheel track | 3,000 mm |
| Ground clearance | 415 mm |
| Max. width | 2,340 mm |
| Wheel base | 1,873 mm |
| Cab height | 2,447 mm |
| Total weight with forks and operator | 8,000 kg |
| WHEELS & TYRES | |
| Standard | 460/70 R24 |
| Optional | 500/70 R24 |
Specifications sourced from the Case IH Farmlift 742 brochure (July 2025). Availability of models and equipment builds may vary. Contact your local Brown and Hurley Agriculture branch to confirm current specification and finance offers.
