New Holland Large Balers

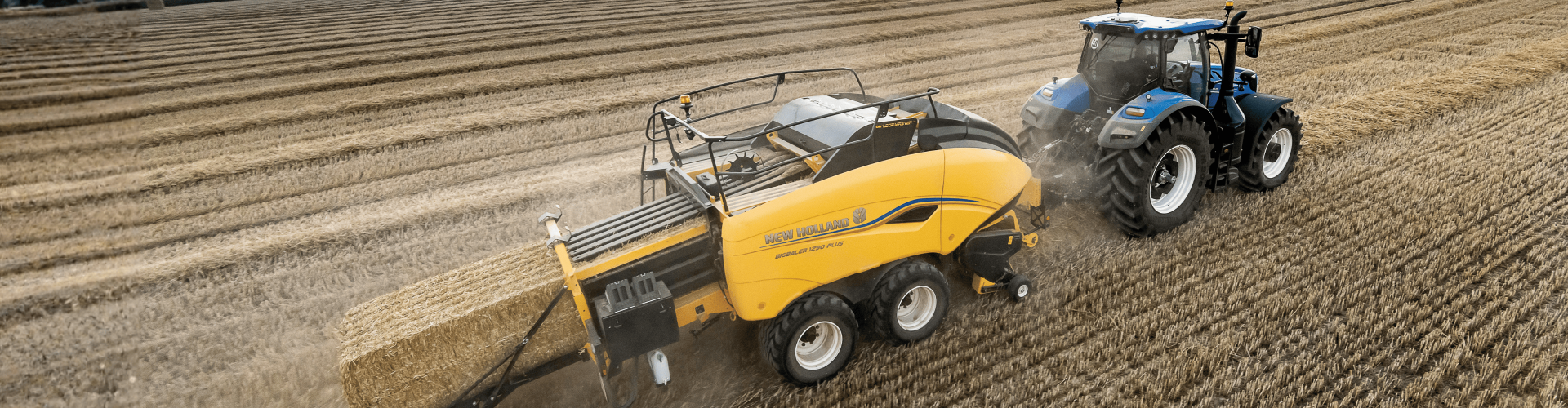

New Holland BigBaler 1290 High Density

The BigBaler 1290 High Density delivers up to 22% higher bale density than conventional balers, helping you move more hay with fewer bales to handle. Its MaxiSweep™ five‑bar pickup and heavy‑duty driveline provide outstanding throughput, while the SmartShift™ gearbox ensures smooth engagement and maximum efficiency.

New Holland’s Loop Master™ knotting system boosts knot strength and eliminates twine offcuts, and the extra‑large twine box lets you bale up to 1,400 bales without stopping. Add IntelliSense™ automation for hands‑free steering, optimized feedrate, and consistent bale quality all day long. If you want higher productivity and premium bale density, this is the baler built to deliver.

Bale Dimensions

Width - 120cm
Height- 90cm
Minimum / Maximum length - 100/300 cm

Make an Enquiry View Brochure View on New Holland's Website

BigBaler Plus

BigBaler: The Ultimate in Bale Density and Versatility

New Holland’s BigBaler series takes baling to new heights with up to 10% higher bale density, thanks to a 31.5-inch extended bale chamber. This improvement ensures softer bale drops, reducing twine breakage and preserving bale integrity. The larger platform makes cleaning a breeze, while the customizable options—three bale sizes, crop processing choices, and terrain-ready tire/axle configurations—mean there’s a perfect model for every operation.

With over seven decades of baling expertise, New Holland continues to lead the way in efficiency and innovation. The redesigned MaxiSweep™ pick-up, heavy-duty rotors, and SmartFill™ bale sensing system ensure top-tier performance, durability, and bale quality. Whether you're baling for biomass, silage, or straw, the BigBaler is engineered for excellence, season after season.

Bale Dimensions

Width & Width - 80/90cm
Minimum / Maximum length - 100/260 cm

Standard & CropCutter versions avalible

Make an Enquiry View Brochure

Bale Dimensions

	BigBaler 870 Plus Packer	BigBaler 870 Plus Packer Cutter	BigBaler 870 Plus Cropcutter™	BigBaler 890 Plus Packer	BigBaler 890 Plus Packer Cutter	BigBaler 890 Plus Cropcutter™	BigBaler 1270 Plus Packer	BigBaler 1270 Plus Cropcutter™	BigBaler 1290 Plus Packer	BigBaler 1290 Plus Cropcutter™
Bale Dimensions
Width / Height (cm)	80 / 70	80 / 70	80 / 70	80 / 90	80 / 90	80 / 90	120 / 70	120 / 70	120 / 90	120 / 90
Minimum / Maximum length (cm)	100 / 260	100 / 260	100 / 260	100 / 260	100 / 260	100 / 260	100 / 260	100 / 260	100 / 260	100 / 260

Tractor Requirements

Minimum PTO power [kW/hp(CV)]	80/109	85/116	100/136	80/109	85/116	100/136	90/122	110/150	95/130	118/160
PTO speed (rpm)	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Hydraulic remotes	2	3	3	2	3	3	2	3	2	3

Main Drive

Gearbox	Enclosed oil immersed triple reduction gearbox	Enclosed oil immersed triple reduction gearbox	Enclosed oil immersed triple reduction gearbox	Enclosed oil immersed triple reduction gearbox	Enclosed oil immersed triple reduction gearbox	Enclosed oil immersed triple reduction gearbox	Enclosed oil immersed triple reduction gearbox	Enclosed oil immersed triple reduction gearbox	Enclosed oil immersed triple reduction gearbox	Enclosed oil immersed triple reduction gearbox
Protection	Shear bolt, overrunning clutch and slip clutch	Shear bolt, overrunning clutch and slip clutch	Shear bolt, overrunning clutch and slip clutch	Shear bolt, overrunning clutch and slip clutch	Shear bolt, overrunning clutch and slip clutch	Shear bolt, overrunning clutch and slip clutch	Shear bolt, overrunning clutch and slip clutch	Shear bolt, overrunning clutch and slip clutch	Shear bolt, overrunning clutch and slip clutch	Shear bolt, overrunning clutch and slip clutch

MaxiSweep™ Pick-Up

Width (DIN 11220) (m)	1.96	1.96	1.96	1.96	1.96	1.96	2.23	2.35	2.23	2.35
Roller windguard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Feed assist auger	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Hydraulic feed assist auger with reverse functionality	–	–	Optional	–	–	Optional	–	Optional	–	Optional
Tine diameter (mm)	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5	5.5
Flotation	Adjustable spring	Adjustable spring	Adjustable spring	Adjustable spring	Adjustable spring	Adjustable spring	Adjustable spring	Adjustable spring	Adjustable spring	Adjustable spring
Castering pickup gauge wheels	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Pick up slipclutch protection	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Gauge wheels (15 X 6.00-6-4ply)	2	2	2	2	2	2	2	2	2	2

CropCutter™ System

CropCutter™ system	–	Standard	Standard	–	Standard	Standard	–	Standard	–	Standard
Knives options	–	6	9 or 19	–	6	9 or 19	–	15 or 29	–	15 or 29
Knife distance (mm)	–	114	78 / 39	–	114	78 / 39	–	78 / 39	–	78 / 39
Knife removal	–	From the front	Sliding knife drawer	–	From the front	Sliding knife drawer	–	Sliding knife drawer	–	Sliding knife drawer
Knife activation, in - out	–	Hydraulic	Hydraulic	–	Hydraulic	Hydraulic	–	Hydraulic	–	Hydraulic
Knife protection	–	Individual springs	Individual springs	–	Individual springs	Individual springs	–	Individual springs	–	Individual springs

Feeding System

Feeder	2 packer forks 6 single tines	3 packer forks 6 single tines	Rotor Width 800mm ”W”tine configuration	2 packer forks 6 single tines	3 packer forks 6 single tines	Rotor Width 800mm ”W”tine configuration	3 packer forks 9 single tines	Rotor Width 1200mm ”W”tine configuration	3 packer forks 9 single tines	Rotor Width 1200mm ”W”tine configuration
Feeder protection	Slip clutch	Slip clutch	Cut-out clutch	Slip clutch	Slip clutch	Cut-out clutch	Slip clutch	Cut-out clutch	Slip clutch	Cut-out clutch
Stuffer	Fork type with 4 tines	Fork type with 6 tines	Fork type with 4 tines	Fork type with 4 tines	Fork type with 6 tines	Fork type with 4 tines	Fork type with 6 tines	Fork type with 6 tines	Fork type with 6 tines	Fork type with 6 tines
Stuffer protection	Shearbolt	Shearbolt	Shearbolt	Shearbolt	Shearbolt	Shearbolt	Shearbolt	Shearbolt	Shearbolt	Shearbolt
Pre-compression chamber, volume (m³)	0.25	0.25	0.25	0.25	0.25	0.25	0.3	0.3	0.3	0.3
SmartFill™ system	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard

Plunger

Speed (Strokes/min)	48	48	48	48	48	48	48	48	48	48
Length of stroke (mm)	710	710	710	710	710	710	710	710	710	710

Tying System

Type	Loop Master™ double knot type	Loop Master™ double knot type	Loop Master™ double knot type	Loop Master™ double knot type	Loop Master™ double knot type	Loop Master™ double knot type	Loop Master™ double knot type	Loop Master™ double knot type	Loop Master™ double knot type	Loop Master™ double knot type
Twine type	110-150M/kg plast.	110-150M/kg plast.	110-150M/kg plast.	110-150M/kg plast.	110-150M/kg plast.	110-150M/kg plast.	110-150M/kg plast.	110-150M/kg plast.	110-150M/kg plast.	110-150M/kg plast.
Number of twines	4	4	4	4	4	4	6	6	6	6
Knotter fan type	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric	Electric
Number of knotter fans	2	2	2	2	2	2	3	3	3	3
Knotter function alert	IntelliView™ monitor and visual	IntelliView™ monitor and visual	IntelliView™ monitor and visual	IntelliView™ monitor and visual	IntelliView™ monitor and visual	IntelliView™ monitor and visual	IntelliView™ monitor and visual	IntelliView™ monitor and visual	IntelliView™ monitor and visual	IntelliView™ monitor and visual
Knotter lubrication	Grease	Grease	Grease	Grease	Grease	Grease	Grease	Grease	Grease	Grease
Twine ball capacity	32	32	32	32	32	32	32	32	32	32

Bale Density System

Proportional 3-way control

IntelliView™ monitor controlled

Electronic Control System

ISO 11783 Connection Ready	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
IntelliView™ IV monitor	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
ISOBUS III IntelliCruise™ system	Optional*	Optional*	Optional*	Optional*	Optional*	Optional*	Optional*	Optional*	Optional*	Optional*
GPS data logging	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional

Axles

Single axle (Tyre size)	600/50R22.5 or 650/55R26.5** or 710/40R22.5	600/50R22.5 or 650/55R26.5** or 710/40R22.5	600/50R22.5 or 650/55R26.5** or 710/40R22.5	600/50R22.5 or 650/55R26.5** or 710/40R22.5	600/50R22.5 or 650/55R26.5** or 710/40R22.5	600/50R22.5 or 650/55R26.5** or 710/40R22.5	600/50R22.5 or 650/55R26.5** or 710/40R22.5	600/50R22.5 or 650/55R26.5** or 710/40R22.5	600/50R22.5 or 650/55R26.5** or 710/40R22.5	600/50R22.5 or 650/55R26.5** or 710/40R22.5
Tandem axle (Tyre size)	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17
Tandem axle with Auto-Steer system (Tyre size)	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17	520/50X17
Large wheel tandem axle with Auto-Steer system (Tyre size)	560/45R22.5 or 600/50R22.5 or 620/40R22.5*	560/45R22.5 or 600/50R22.5 or 620/40R22.5*	560/45R22.5 or 600/50R22.5 or 620/40R22.5*	560/45R22.5 or 600/50R22.5 or 620/40R22.5*	560/45R22.5 or 600/50R22.5 or 620/40R22.5*	560/45R22.5 or 600/50R22.5 or 620/40R22.5*	560/45R22.5 or 600/50R22.5 or 620/40R22.5*	560/45R22.5 or 600/50R22.5 or 620/40R22.5*	560/45R22.5 or 600/50R22.5 or 620/40R22.5*	560/45R22.5 or 600/50R22.5 or 620/40R22.5*

Brakes

Hydraulic	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Pneumatic	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional

Maximum Travelling Speeds

Single & Tandem axle / Large wheel tandem axle (kph)

40 / 60

Baler Dimensions

Length chute closed (single piece) (mm)	8259	8259	8315	8259	8259	8259	8259	8315	8259	8315
Width (Single axle 600/50R22.5 tyres) (mm)	2568	2568	2568	2568	2568	2568	2948	2948	2948	2948
Width (Single axle 710/40R22.5 tyres) (mm)	2604	2604	2604	2604	2604	2604	2984	2984	2984	2984
Width (Tandem axle 520/50X17 tyres) (mm)	2398	2398	2398	2398	2398	2398	2782	2782	2782	2782
Width (Tandem axle 600/50R22.5 tyres) (mm)	2568	2568	2568	2568	2568	2568	2948	2948	2948	2948
Width (Large wheel tandem axle 600/50R22.5 tyres)	2562	2562	2562	2562	2562	2562	2946	2946	2946	2946
Height (Single axle and Tandem axle) (mm)	3133	3133	3223	3133	3133	3223	3133	3223	3133	3223
Weight (depending on spec)	9400	9500	9800	9600	9700	9700	10200	11000	10500	11300

Make an Enquiry
