New Holland T4S Series

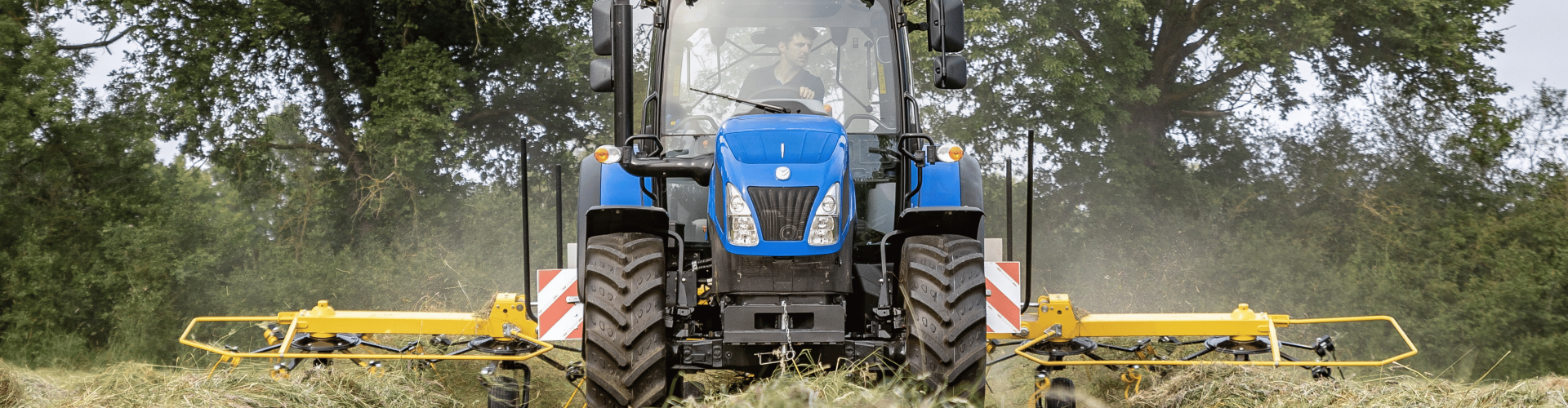

New Holland T4S
The New Holland T4S range delivers modern simplicity with reliable performance, perfectly suited to small farms, hobby farms, hay and forage work, farmyard duties and light field operations. With horsepower ranging from 55 hp up to 75 hp, a rugged 4WD platform, intuitive transmissions and strong hydraulics, these tractors balance everyday capability and ease of use with durable design and operator comfort.
Simple, Productive Power
Powered by fuel-efficient, turbo-intercooled engines compliant with emissions standards, T4S tractors provide smooth, responsive torque and reliable power for loader work, cultivation, mowing, towing and transport.
Flexible Transmissions & Control
Choose from 8×8 mechanical transmissions on the T4.55S and T4.65S or 12×12 gearboxes on the T4.75S — all with hydro-mechanical shuttle for clutch-free directional changes and easy loader operation.
Strong Hydraulics & PTO
Class-leading hydraulics with Lift-O-Matic linkage control as standard help deliver smooth, controlled implement lift and depth control. Engineered for diverse implements, T4S tractors also feature servo-assisted PTO engagement with soft-start capability to protect driveline and attachments.
Comfortable Operator Environment
Available in both open ROPS and a new generation four-post cab, T4S tractors offer excellent all-round visibility, ergonomic controls and climate-controlled comfort to keep operators productive throughout long working days.
New Holland T4S – Specifications
| Specification | T4.55S | T4.65S | T4.75S |
|---|---|---|---|
| Engine Size | 2.93 L 3-cyl Turbo | 2.93 L 3-cyl Turbo | 2.93 L 3-cyl Turbo |
| Horsepower | 55 HP | 65 HP | 75 HP |
| Maximum Torque | 226 Nm @ 1400 rpm | 261 Nm @ 1400 rpm | 291 Nm @ 1400 rpm |
| Fuel Tank Capacity | 82 L | 82 L | 82 L |
| Rear Lift Capacity | 3,000 kg (ball ends) | 3,000 kg (ball ends) | 3,000 kg (ball ends) |
| Transmission | 8×8 Mechanical Shuttle (Hydraulic Powershuttle) | 8×8 Mechanical Shuttle (Hydraulic Powershuttle) | 12×12 Mechanical Shuttle (Hydraulic Powershuttle) |
| PTO Speeds | 540 / 540E | 540 / 540E | 540 / 540E |
| Hydraulic Flow | 47.7 L/min | 47.7 L/min | 47.7 L/min |
| Drive Options | 4WD | 4WD | 4WD |
| Wheelbase | 2083 mm | 2083 mm | 2083 mm |
Specifications sourced from official New Holland supplier and dealer data
