New Holland TDD Series

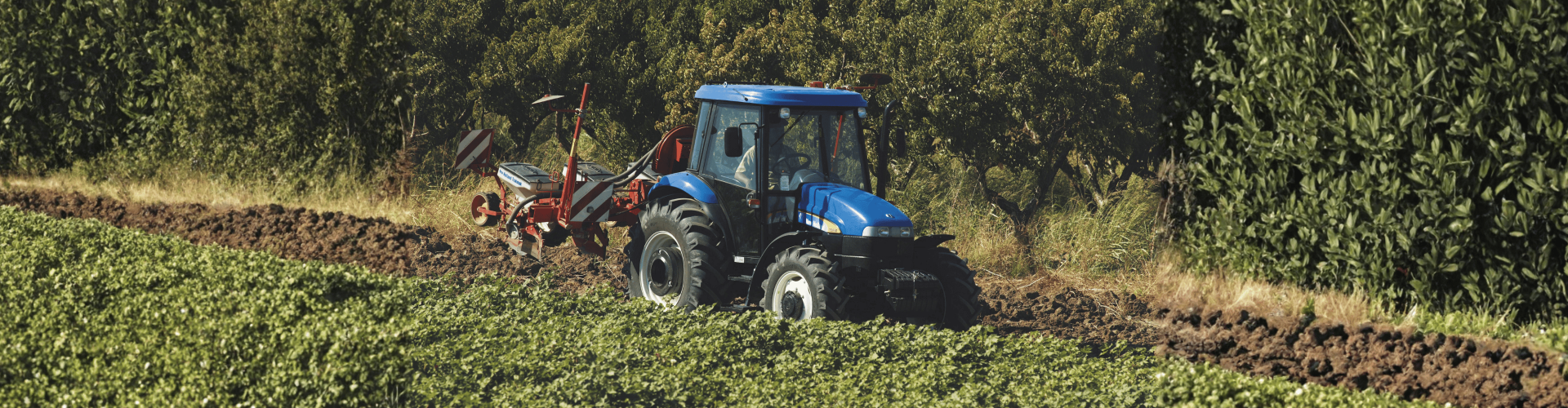

New Holland TD95D High Clearance
94 hp | 4WD | 20x12 Synchro Shuttle™ Transmission
Looking for a tractor that can work in tall vegetables and specialty crops without crop contact? The New Holland TD95D High Clearance delivers 94hp from a turbocharged 3.9L four-cylinder engine, backed by a 635mm minimum ground clearance and a rear lift capacity of up to 3,565kg. Designed and built for vegetable, fruit, row crop and nursery applications, it's built to handle high-flow hydraulic implements and adjustable row spacings all day, every day.
Why Growers Choose the TD95D High Clearance
| 635mm Ground Clearance
Minimal crop contact in tall vegetables and specialty crops, with row spacings from 1,540 to 2,054mm available as standard. | High Flow Hydraulics
51.7 L/min flow at the remotes plus a separate 26.5 L/min steering pump, for a combined hydraulic flow of 78.2 L/min. | Lift-O-Matic™ System
Standard rear linkage management system for precise, repeatable implement control at the headland. |
| Flexion Bar™ Draft Sensing
Lower link draft sensing standard on every model, for accurate, consistent implement depth control. | Built to Specify
Based around the standard TDD platform, so the tractor can be specified to meet your specific row-crop demands. | Operator Ready
Comfort driver seat and air re-circulation filters in the cab, plus a noise reduction package on ROPS models. |
TD95D High Clearance Specifications
| MODEL | |
| Model | TD95D HC |
| ENGINE | |
| Cylinders / aspiration / emission level | 4 / Turbocharged / Tier II |
| Capacity | 3,908 cm³ |
| Rated engine power (ISO TR14396 - 2000/25/EC) | 69 kW / 94 hp |
| PTO power | 60 kW / 81 hp |
| Rated engine speed | 2,500 rpm |
| Max. torque @ 1,500 rpm | 337 Nm |
| Torque rise | 33% |
| Fuel tank capacity | 115 L |
| TRANSMISSION | |
| 20x12 Synchro Shuttle™ (30kph) with creeper | Standard |
| Speed range with creeper | 0.25 – 30 kph |
| AXLES | |
| 4WD front axle | Standard |
| Turn angle | 50° |
| Min. turn radius | 4,200 mm |
| TYRES | |
| Tyre size (Front / Rear) – Option 1 | 13.6R38 |
| Tyre size (Front / Rear) – Option 2 | 320/80R42 |
| HYDRAULICS | |
| Main pump flow – MegaFlow™ | 52 Lpm |
| Steering pump flow |
