New Holland TK4 Series

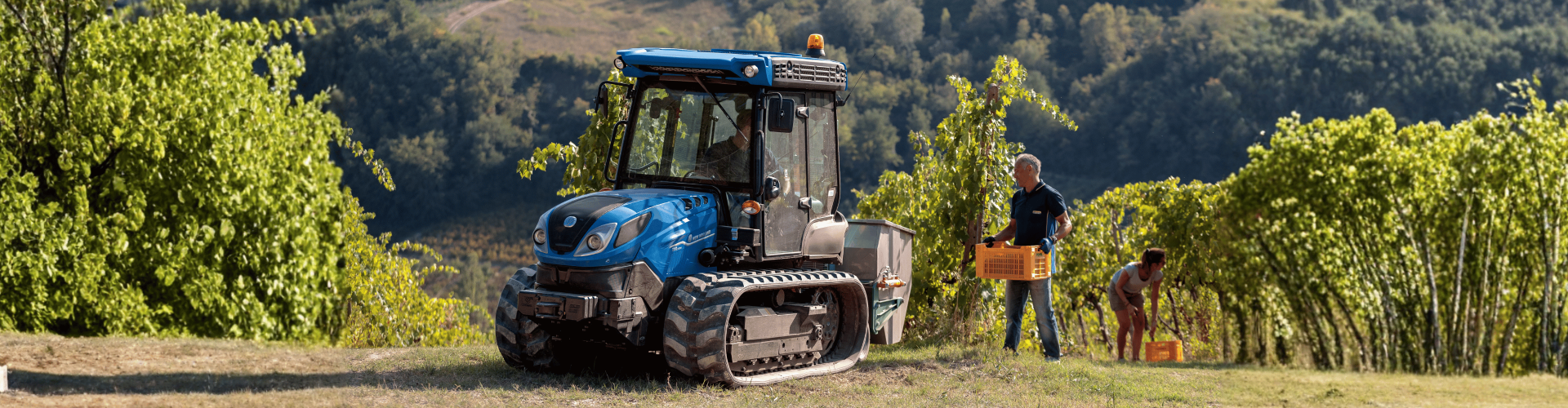

New Holland TK4.100M
98 hp | Tracked 4WD | 8x8 Mechanical Shuttle Transmission
Looking for a tractor that can go where wheeled machines simply can't? The New Holland TK4.100M delivers 98hp from a proven 3.4L four-cylinder FPT F5C engine, backed by a choice of steel or SmartTrax™ rubber tracks and a rear lift capacity of up to 3,535kg. Designed and proven for steep slopes, soft soils and the tightest orchard and vineyard rows, it's built to deliver stability, traction and control where standard tractors can't operate.
Why Growers Choose the TK4.100M
| Steel or SmartTrax™ Rubber
Choose steel tracks for maximum durability or SmartTrax™ rubber tracks for a smoother ride and reduced ground disturbance. | Steering-O-Matic™ Plus
A single control lever to steer, drive and stop the tractor, simplifying operation on steep and demanding terrain. | Lift-O-Matic™ Plus
Award-winning mechanical hydraulic control system lets you conveniently set, adjust, raise or lower the rear linkage. |
| Factory Cab Option
Quiet, all-weather comfort available from the factory on the Open Field model, alongside the standard ROPS platform. | Powerful Yet Compact
A proven 3.4L FPT F5C four-cylinder engine producing 98hp gross and 86hp at the PTO in a compact, low-profile package. | Traction Where Wheels Can't Go
Low ground pressure and superior traction across slopes and soft soils, ideal for vineyards, orchards and rough terrain. |
TK4.100M Specifications
| MODEL | |
| Model | TK4.100M |
| ENGINE | |
| Engine model / make | F5C, FPT |
| Cylinders / capacity / emission level | 4 / 3,400 cm³ / Tier 4A / Stage 3B |
| Rated engine power (ISO TR14396 - ECE R120) | 73 kW / 98 hp |
| PTO power (claimed) | 64 kW / 86 hp |
| Rated engine speed | 2,300 rpm |
| Fuel tank capacity | 80 L |
| TRANSMISSION & STEERING | |
| 8x8 mechanical shuttle transmission | Standard |
| 16x8 creeper transmission | Optional |
| Steering-O-Matic™ Plus single-lever steering | Standard |
| TRACKS | |
| Track type | Steel / SmartTrax™ rubber |
| Track width | 1,300 mm |
| HYDRAULICS | |
| Main pump flow | 45 Lpm |
| Lift-O-Matic™ Plus system | Standard |
| Rear remote valves (max. number) | 4 |
| LINKAGE | |
| Max. lift capacity at ball ends | 3,535 kg |
| PTO | |
| Rear PTO speeds | 540 / 540E rpm (Standard) |
| 540 / 1000 rpm PTO | Optional |
| OPERATOR ENVIRONMENT | |
| Two-post ROPS | Standard |
| Factory heated / air-conditioned cab | Optional |
| WEIGHTS | |
| Total weight (approx.) | 3,505 – 5,300 kg |
| DIMENSIONS & WEIGHT | |
