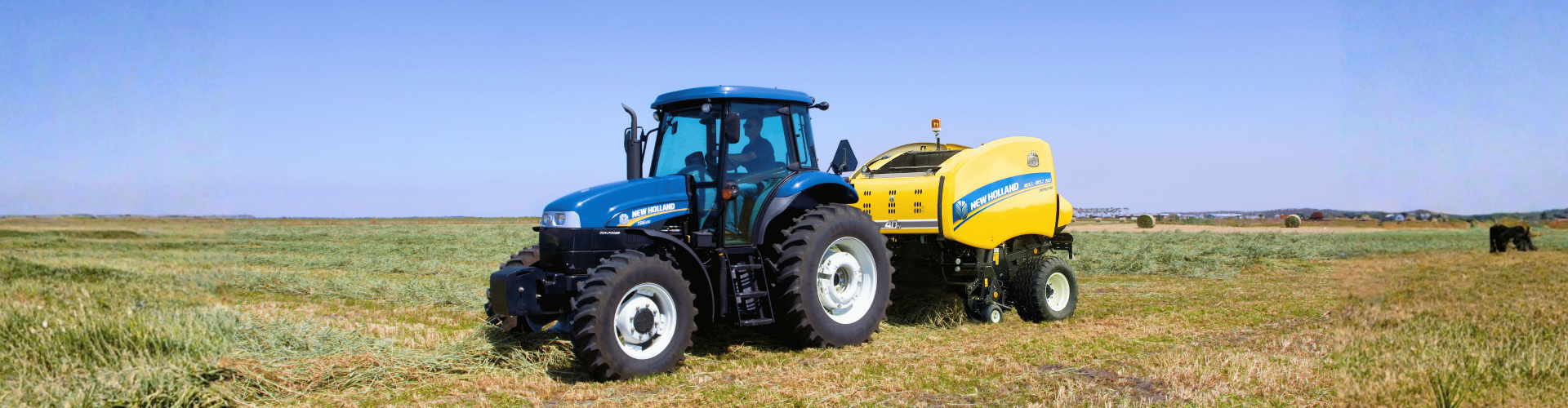

New Holland TS6 Series
New Holland TS6.120 High Clearance
118 hp | 4WD | 12x12 Power Shuttle Transmission
Looking for a high clearance tractor that can move confidently through tall row crops? The New Holland TS6.120 High Clearance delivers 118hp from a turbocharged and intercooled 4.5L four-cylinder IVECO engine, backed by 637mm of front axle ground clearance and a rear lift capacity of up to 3,640kg. Designed and built for cotton, sugar cane and other tall specialty crops, it's built to handle demanding row-crop conditions all day, every day.
Why Growers Choose the TS6.120 High Clearance
| 637mm Ground Clearance
Front axle ground clearance of 637mm and 708mm under the drawbar gives confident travel over tall row crops. | Powerful IVECO Engine
A turbocharged and intercooled 4.5L four-cylinder engine delivering 118hp with 35% torque rise for tough conditions. | Flexible Transmission
Standard 12x12 Power Shuttle with an optional 24x12 Dual Power for a wider range of working speeds. |
| 4 Rear Remote Valves
Standard colour-coded remotes with detent kick-out and pressure-connect couplers, flowing up to 83 Lpm at one remote. | Mechanical Draft Control
Standard MDC with fixed ball ends and telescopic stabilisers for accurate, consistent implement depth control. | Operator Comfort
Deluxe air suspension seat, tilt and telescoping steering wheel and air conditioning standard in the Cab model. |
TS6.120 High Clearance Specifications
| MODEL | |
| Model | TS6.120 High Clearance |
| ENGINE | |
| Engine make / model | IVECO F4CE9484J |
| Cylinders / aspiration / valves per cylinder | 4 / Turbocharged & Intercooled / 2 |
| Capacity | 4.5 L |
| Emission legislation level | Tier III |
| Rated engine power (ISO TR14396) | 88 kW / 118 hp |
| PTO power at rated speed | 72.9 kW / 97.8 hp |
| Rated speed | 2,200 rpm |
| Max. torque @ 1,300 rpm | 515 Nm @ 1,250 rpm |
| Torque rise | 35% |
| Fuel capacity | 150 L |
| TRANSMISSION | |
| Base 12F x 12R (8x8 + creeper) Power Shuttle | Standard |
| Min. / max. speed (base) | 0.26 – 30 kph |
| 24 x 12 Dual Power (8x8 + creeper + Dual Power) | Optional |
| Min. / max. speed (Dual Power) | 0.21 – 30 kph |
| Transmission clutch type | Wet clutch |
| AXLES | |
| Rear axle type | Spur gear (drop box) |
| Rear axle max. permissible load (standard) | 4,990 kg |
| Front axle (4WD) class | Class 3 |
| Front axle max. capacity | 4,100 kg |
| Min. / max. track settings (front & rear) | 1,829 – 2,134 mm |
| Automatic 4WD & diff lock engagement | Electro-hydraulic |
| HYDRAULICS | |
| System type | Gear, open centre |
| High pressure circuit (remotes / lift pump) | 49 L/min |
| Low pressure circuit (steering / lubrication) | 34 L/min |
| Auxiliary pump (hitch & remote valves) | 34 L/min |
| Rear auxiliary remote valves (standard) | 4 |
| Max. flow at one remote | 83 Lpm @ rated engine speed & pressure |
| LINKAGE | |
| Category | Cat I / II |
| Mechanical Draft Control (MDC) |
