Case IH Combines

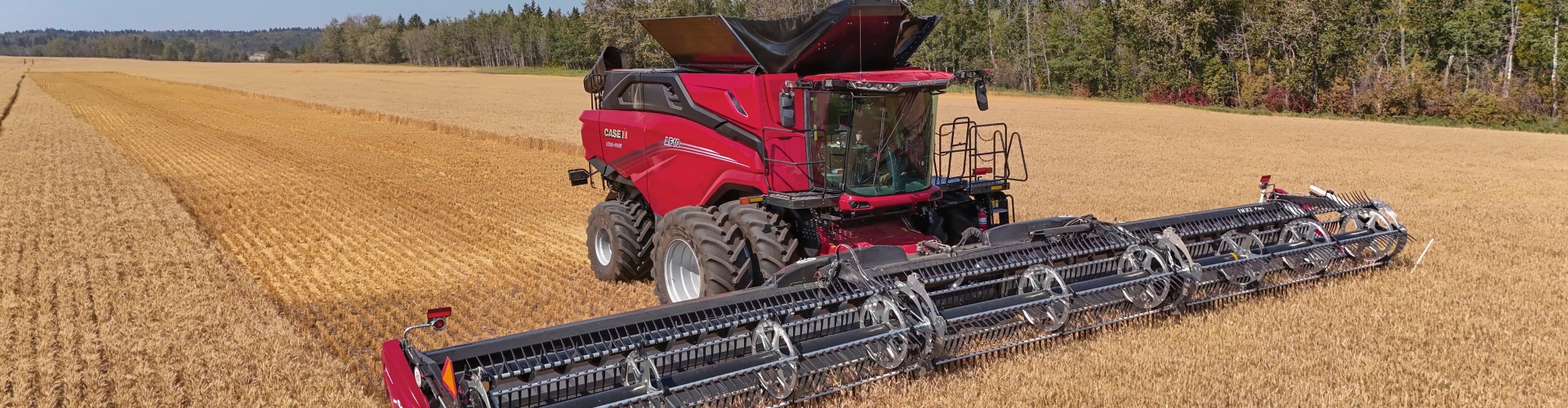

AF 10 & AF9
Axial Flow 260
⬅ Swipe sideways to compare models ➡
| Model | 7260 | 8260 | 9260 | AF9 | AF10 |
|---|---|---|---|---|---|
| Engine | |||||
| Engine Model | FPT Cursor 11 | FPT Cursor 13 | FPT Cursor 16 | FPT (12.9 L) | FPT (15.9 L) |
| Displacement | 11,100 cm³ | 12,900 cm³ | 15,900 cm³ | 12,900 cm³ | 15,900 cm³ |
| Max Power | 366 kW (498 hp) | 420 kW (571 hp) | 466 kW (634 hp) | Up to 466 kW (634 hp) peak | Up to 570 kW (775 hp) peak |
| Fuel Tank | 1,125 L | 1,125 L | 1,200 L (1,020 L w/ Xtra-Chopping) | 1,300 L | 1,500 L |
| Threshing / Separating | |||||
| Rotor Configuration | Single rotor | Single rotor (larger AFXL design) | |||
| Rotor Diameter / Length | 762 mm / 2,638 mm | 762 mm / 3,670 mm | |||
| Rotor Speed Range | 220–1,180 rpm | 235–1,180 rpm | |||
| Separation Area | 2.98 m² | 50% larger than previous rotors (industry's largest) | |||
| Threshing/Separating Wrap | 180° / 180° | ||||
| Cleaning System | |||||
| Sieve Type | Cascade sieve | Cross-Flow Plus (side-shake, 35% larger) | |||
| Total Sieve Area | 6.5 m² | 8.7 m² | |||
| Levelling Capability | 12.1% | Up to 25% (13°) | |||
| Cleaning Fan | Hydraulic load sensing, 300–1,150 rpm | Cross-Flow fan (hydraulic), 300–1,150 rpm, 432 mm diameter | |||
| Grain Handling | |||||
| Grain Tank Capacity | 11,100 L (14,400 L opt) | 14,400 L | 14,400 L | 16,000 L | 20,000 L |
| Unloading Rate | 141 L/s | 159 L/s | 159 L/s | 210 L/s (159 L/s opt) | 210 L/s |
| Unloading Auger Length | 6.7–8.8 m (standard/high-capacity options) | 11.5 m (up to 18.6 m / 13.7 m controlled traffic) | |||
| Straw Chopper & Residue Management | |||||
| Chopper Type | Integral fixed knife chopper / Xtra-Chopping system (opt) | MagnaCut integral chopper / MagnaChop high hood-mounted chopper (opt) | |||
| Residue Automation | Manual/in-cab speed adjustable | Radar spread automation, up to 50 ft. (15.2 m) width | |||
| Technology | |||||
| Automation | Harvest Command, standard | Harvest Command, standard + Grain quality imaging cameras | |||
| Precision Ready | Yield & moisture monitoring, guidance ready | FieldOps, AccuSync, AccuGuide, Remote Display Viewing | |||
| Dimensions & Weight | |||||
| Length | 8,050 mm | – | |||
| Width | 3,490 mm | 3,948 mm (AF9/AF10 shared) | |||
| Transport Height | 3,980 mm | 3,980 mm | |||
| Approximate Weight | 19,000 kg | 20,000 kg | 21,000 kg (tracks) | 21,342–24,137 kg | 23,023–25,996 kg |
